New Engine Issues

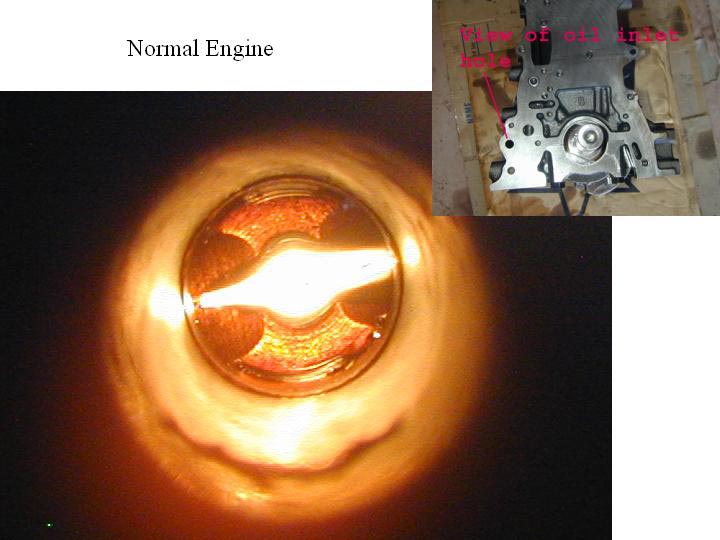

View of normal 22RE engine. Both the old engine and a correctly machined engine looks like this in the oil passage way.

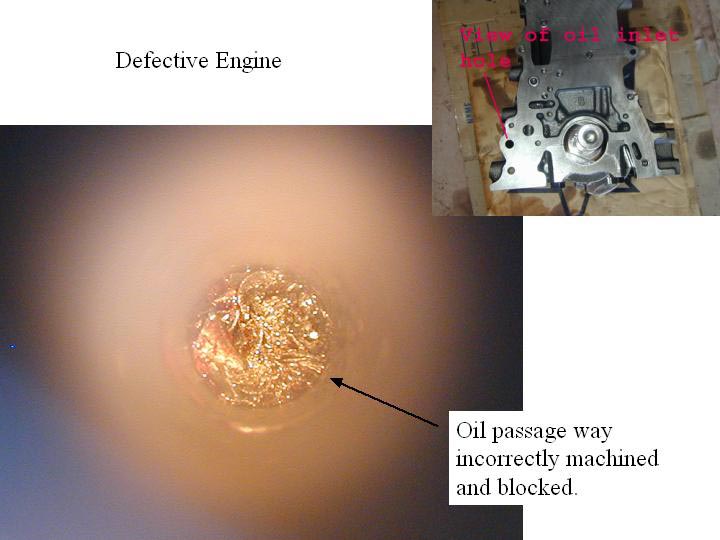

This is how the oil passageway looks in the new engine that I got. It was completely blocked.

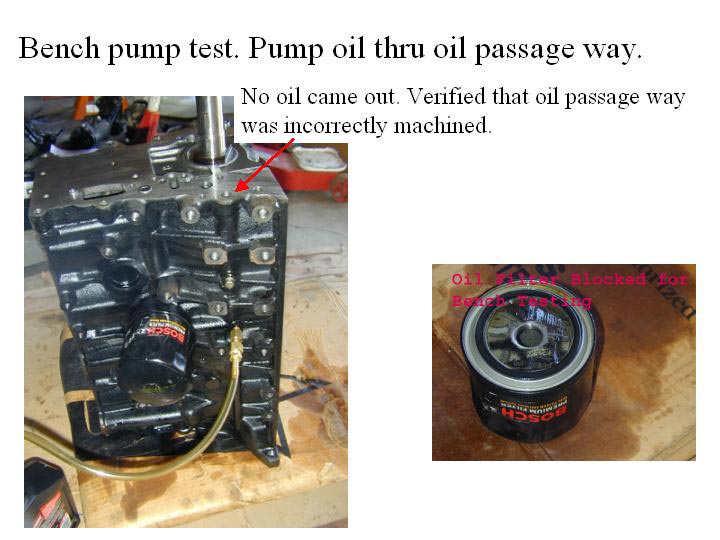

To prove that the oil passageway was blocked, a pump test was performed by pumping oil thru the oil pressure sender port with the filter blocked with duct tape. No oil came out thru the oil pump port.

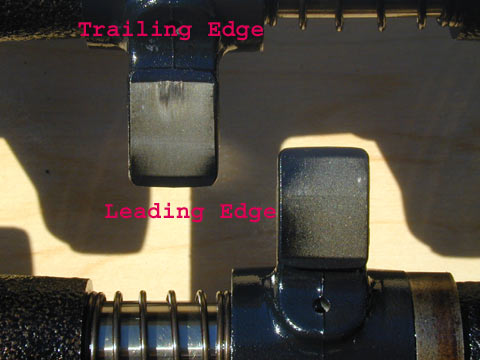

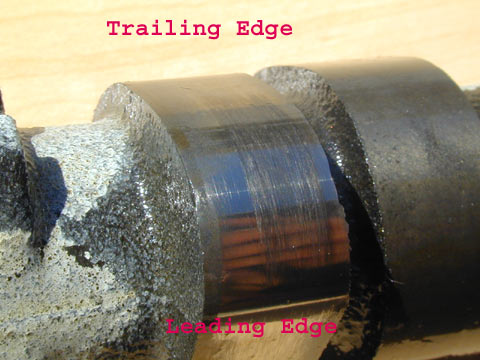

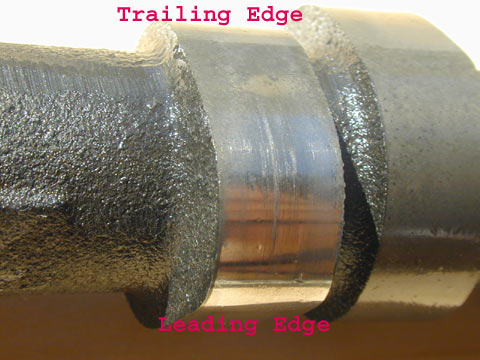

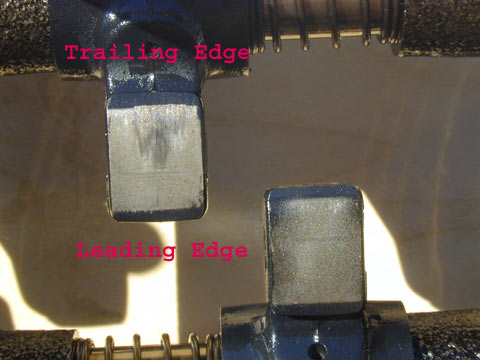

Damage to the camshaft due to no oil pressure:
